Namebox stretching? [SOLVED]

[kitsubasa]

I've been trying to get a namebox working, but for some reason it keeps stretching out to a larger size than it's meant to be.

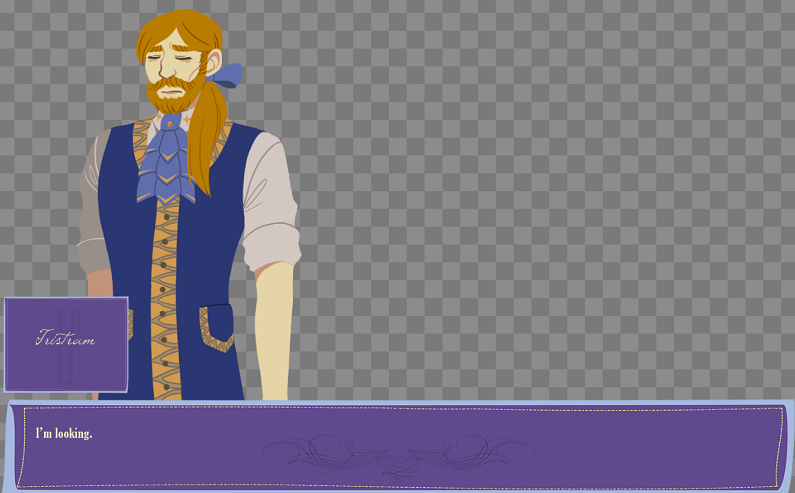

Here is a picture showing how the stretching looks...



... and here's a file, with dimensions listed, of the way it's meant to display.



In options.rpy I have the following code setting style info for textbox+namebox:

Code: Select all


    style.window.background = Frame("Resources/GUI/advbox.png", 1437, 180)
    style.say_who_window.background = Frame("Resources/GUI/namebox.png", 288, 64)

    style.window.left_padding = 70
    style.window.right_padding = 70
    style.window.top_padding = 50
    style.window.bottom_padding = 50

    style.window.yminimum = 180

    style.say_who_window.background.yminimum = 64
    style.say_who_window.background.xminimum = 288

    style.say_who_window.background.left_padding = 0
    style.say_who_window.background.right_padding = 0
    style.say_who_window.background.top_padding = 0
    style.say_who_window.background.bottom_padding = 0

And here's the code I'm using in script.rpy to call the namebox.

Code: Select all

$ tris = Character('Tristram', show_two_window=True,
        who_color = "#FFFFC0",
        who_font = "Resources/fonts/Thyssen.ttf", who_size=20,
        )

Could anyone give me advice on how to fix this? I've tried changing all the padding settings, altering the font/text size, and altering the ymin/xmin settings and the like, but several days on and I'm still no closer to making it work. D:

[ArachneJericho]

Code: Select all

 style.say_who_window.background.left_padding = 0

Shouldn't this be

Code: Select all

style.say_who_window.left_padding = 0

You're applying the padding to the background instead of the window object, and thus the say_who window is just directly inheriting the padding from window.

[kitsubasa]

Thank you, that fixed it! Everything's working now. : )
