[SOLVED] Desperate help needed on positioning images.

[mugenjohncel]

I am now desperate and begging for assistance.

I have this VN where you sell fried lizards. And in the middle of it all is a clock system where every decision you make will have to revolve around the clock. This is a very important component of the VN... without it, everything falls apart.

What I have here is the working code (thanks Alex) that works almost perfectly (position, rotation, everything) but doesn't quite disappear out of screen as intended. So PyTom provided an edited and updated code (thanks) which eliminates the dissolve problem but there is another problem.

Here are the images used in the clock code:

The Clock Face (clock_2.png)


Long Clock Hand (clock.png)


Short Clock Hand (clock_1.png)

Here is the updated clock code:

Code: Select all

init python:
    renpy.image("clock", "gui_set/clock.png") # Short Clockhand
    renpy.image("clock_1", "gui_set/clock_1.png") # Long Clockhand
    renpy.image("clock_2", "gui_set/clock_2.png") # Clockface

    def Clocks():
        if clock: # if False - clock is hide
            ui.at(Position(xpos=150, ypos=140, xanchor="center", yanchor="center"))
            ui.add("clock_2")
            # xalign and yalign can be replaced by xpos and ypos - position where the center of the clock should be
            # this segment is the one responsible for the clockface

            ui.at(RotoZoom((minutes*6), (minutes*6), 5.0, 1, 1, 1, rot_bounce= False, rot_anim_timebase=False, opaque=False))
            ui.at(Position(xpos=150, ypos=140, xanchor="center", yanchor="center"))
            ui.add("clock")
            # this segment is the one responsible for the short clock hand.

            ui.at(RotoZoom ((minutes*0.5), (minutes*0.5), 5.0, 1, 1, 1, rot_bounce= False, rot_anim_timebase=False, opaque=False))
            ui.at(Position(xpos=150, ypos=140, xanchor="center", yanchor="center"))
            ui.add("clock_1")
            # this segment is the one responsible for the long clock hand.

    config.overlay_functions.append(Clocks)

So it works like this:
The clock face will be shown on screen at position xpos=150, ypos=140 with center anchor followed by the clock hands, PNG's with transparencies that are the same size as the clockface.

Code: Select all

$ clock = False
with dissolve

When set to "True" Clock will appear in the screen with "dissolve"
When set to "False" Clock will disappear with "dissolve"

Code: Select all

$ minutes = 720

This will set the time of the clock. By default, clock will start at 0 which means 12:00MN.

To add time you use code like this

Code: Select all

$ minutes += 1

The code above adds 1 minute to the time and will rotate the minute hand by about 6 degrees clockwise and at the same time will make the our clock move by about 0.5 degrees.

So if your clock count is...

Code: Select all

$ minutes = 0

It is 12:00MN

And you add something like this

Code: Select all

$ minutes += 60

The minute hand will rotate 360 degrees and the hour hand will now point at 1... just like a real analog clock...

So it's like this...

Code: Select all

# Clock Guide
# 12:00 MN - 0
# 1:00  AM - 60
# 2:00  AM - 120
# 3:00  AM - 180
# 4:00  AM - 240
# 5:00  AM - 300
# 6:00  AM - 360
# 7:00  AM - 420
# 8:00  AM - 480
# 9:00  AM - 540
# 10:00 AM - 600
# 11:00 AM - 660
# 12:00 NN - 720
# 1:00  PM - 780
# 2:00  PM - 840
# 3:00  PM - 900
# 4:00  PM - 960
# 5:00  PM - 1020
# 6:00  PM - 1080
# 7:00  PM - 1140
# 8:00  PM - 1200
# 9:00  PM - 1260
# 10:00 PM - 1320
# 11:00 PM - 1380

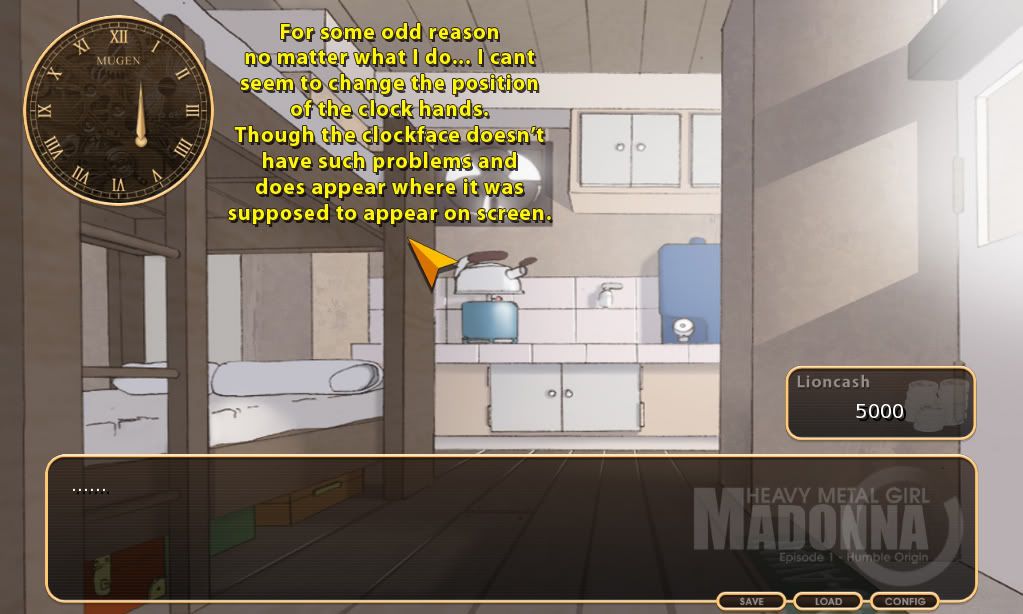

Now it is working as intended... it rotates like a clock it behaves like a clock except I now lost the ability to precisely position the clock hands in the screen... I tried adjusting the obvious parts that will dictate their positions in the screen... the clock-face can and does behave as it should have been but the same can't be said of the hands... they're just stuck there. They rotate and behave like a clock except they're not in the right place...



All I needed now is to position the clock hands precisely at the center of the clockface. I tried everything in my limited capabilities but I've exhausted every once of my processing power.

Please help me... this poor old battered man...

[denzil]

I swapped those two ui.at lines, and it seems to work:

Code: Select all

init python:
    renpy.image("clock", "gui_set/clock.png") # Short Clockhand
    renpy.image("clock_1", "gui_set/clock_1.png") # Long Clockhand
    renpy.image("clock_2", "gui_set/clock_2.png") # Clockface

    def Clocks():
        if clock: # if False - clock is hide
            ui.at(Position(xpos=150, ypos=140, xanchor="center", yanchor="center"))
            ui.add("clock_2")
            # xalign and yalign can be replaced by xpos and ypos - position where the center of the clock should be
            # this segment is the one responsible for the clockface

            ui.at(Position(xpos=150, ypos=140, xanchor="center", yanchor="center"))
            ui.at(RotoZoom((minutes*6), (minutes*6), 5.0, 1, 1, 1, rot_bounce= False, rot_anim_timebase=False, opaque=False), )
            ui.add("clock")
            # this segment is the one responsible for the short clock hand.

            ui.at(Position(xpos=150, ypos=140, xanchor="center", yanchor="center"))
            ui.at(RotoZoom ((minutes*0.5), (minutes*0.5), 5.0, 1, 1, 1, rot_bounce= False, rot_anim_timebase=False, opaque=False))
            ui.add("clock_1")
            # this segment is the one responsible for the long clock hand.

    config.overlay_functions.append(Clocks)

[mugenjohncel]

Yes it is working now... Thank you... really, thank you!!!

I've been trying to figure it for two days now... I make sure you're properly credited...

"POOF" (Can I hug you?)
